2X2 2X3 2x4 Indoor Video Wall High-brightness 46" 55" LCD panel
High-Brightness 46” & 55” Ultra-Narrow Bezel Panels
Product Overview
This indoor LCD video wall solution is designed for professional commercial and control-room projects, supporting 2×2, 2×3, 2×4 and scalable multi-screen configurations.
Available in 46-inch and 55-inch sizes, both models feature an ultra-narrow 1.7mm bezel, high brightness panels, and 24/7 operation capability, delivering a seamless and reliable large-screen display for mission-critical environments.
Display Specifications Comparison
| Specification |
46” LCD Video Wall Panel |
55” LCD Video Wall Panel |
| Screen Size |
46 inch |
55 inch |
| Bezel Width |
1.7 mm |
1.7 mm |
| Resolution |
1920 × 1080 (Full HD) |
1920 × 1080 (Full HD) |
| Aspect Ratio |
16:9 |
16:9 |
| Brightness |
500 cd/m² |
500 cd/m² |
| Contrast Ratio |
4000:1 |
4000:1 |
| Viewing Angle |
178° (H) / 178° (V) |
178° (H) / 178° (V) |
| Response Time |
8.5 ms |
8 ms (typ.) |
| Color Depth |
8-bit, 16.7M colors |
8-bit, 16.7M colors |
| Color Gamut |
72% |
72% |
| Refresh Rate |
60 Hz |
60 Hz |
| Operation Mode |
24/7 Continuous |
24/7 Continuous |
Interfaces & Control
| Interface |
46” Panel |
55” Panel |
| HDMI Input |
1 × HDMI (up to 4K @30Hz) |
1 × HDMI (up to 4K @30Hz) |
| RJ45 Video Input |
Yes (Network transmission) |
Yes (Network transmission) |
| RS232 Control |
Yes |
Yes |
| USB |
USB 2.0 (Upgrade / Media) |
USB 2.0 (Upgrade / Media) |
Power & Mechanical
| Item |
46” Panel |
55” Panel |
| Max Power Consumption |
≤110 W |
≤180 W |
| Standby Power |
<0.3 W |
<0.3 W |

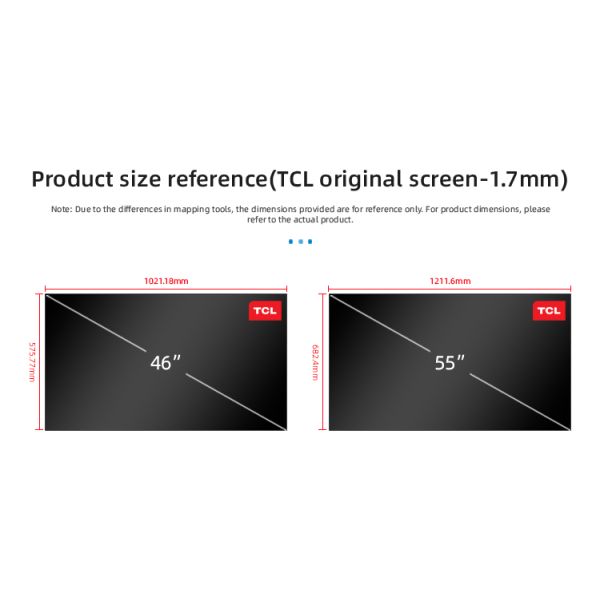

| Dimensions (W×H×D) |
1022.5 × 577.2 × 76.3 mm |
Approx. 1213 × 684 × 76 mm |
| Installation Orientation |
Landscape / Portrait |
Landscape / Portrait |
| Installation Methods |
Wall-mount / Embedded / Floor-standing / Front maintenance |
Wall-mount / Embedded / Floor-standing / Front maintenance |
Typical Applications
- Security Monitoring Centers
- Command & Control Rooms
- Corporate Operation Centers
- Retail & Commercial Advertising Walls
- Exhibition Halls & Experience Centers
- Transportation & Public Information Displays
Project Support & Customization
We support complete video wall project solutions, including:
- Video wall layout design (2×2 / 2×3 / 2×4 and beyond)
- Signal distribution & control system matching
- OEM / ODM customization
- Long-term technical support
